USB 2.0 Offset Type DIP USB Receptacle 3.6H L=10.5mm Stainless Steel Shell LCP Housing 5000 Lifecycle USB Connector
What is USB Receptacle?
A USB receptacle is the female connector on a device that is used to receive a USB plug. It's the port where you insert the male end of a USB cable or connector. The USB receptacle is also commonly referred to as a USB port. These ports come in different shapes and sizes depending on the type of USB connector they support, such as USB-A, USB-B, USB-C, or Micro USB. The receptacle facilitates data transfer and power delivery between the device and the connected peripheral.
USB 2.0 Receptacle (USB connector, USB port)
USB 2.0 receptacle is a female connector on a device that is compliant with the USB 2.0 standard. This receptacle is typically designed to accept USB 2.0 Type-A plugs, which are rectangular in shape and commonly used for connecting peripherals like keyboards, mice, printers, and external storage devices to computers and other devices.
USB 2.0 receptacles support data transfer rates of up to 480 Mbps (megabits per second) and provide power to connected devices for charging and operation. They are commonly found on computers, laptops, desktops, and various consumer electronics.
It's important to note that USB 2.0 receptacles are backward compatible with USB 1.1 devices, meaning you can plug USB 1.1 devices into a USB 2.0 receptacle, although data transfer speeds will be limited to the capabilities of the USB 1.1 standard.
Image of U2-370403118-R USB2.0 Connector/Receptacle/Port
Technical Data
| Part Number | U2-370403118-R (White) |
| 1. Electrical | |
| Voltage Rating | 20VAC RMS |
| Current Rating | 3.0 Amp |
| Contact Resistance | 30mΩ Max |
| Withstand Voltage | 500V AC for one minute at sea level |
| 2. Mechanical | |
| Mating Force | 35N Max |
| Unmating Force | 10N Min |
| Life Cycle | 5000 |
| 3. Environmental | |
| Operating Temperature | -40℃ to 85℃ |
| Salt Spray | 48H at 35℃ with 5%-salt-solution concentration |
| 4. Material | |
| Housing | High Temp LCP |
| Contact | Copper Alloy T=0.20 |
| Shell | Stainless Steel T=0.30 |
| 5. Plating | |
| Contact | Gold plating 3u", matte tin plated on soldertail all over nickel plating |
| Shell | All over nickel plating |
Alinta provide USB 2.0 Offset Type DIP Receptacle H=3.6 L=10.5mm Stainless Steel Shell White Housing 5000 Lifecycle USB Connector.
3118 for White Hosing
3117 for Gray Housing
3116 for Black Housing

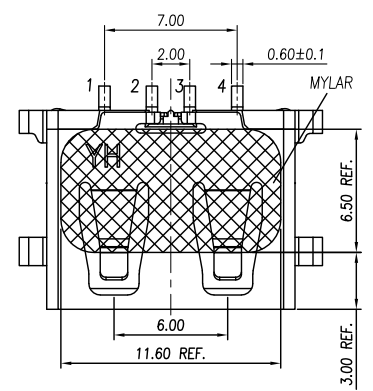

Dimension of U2-370403118-R
Alinta provides our customers with robust, reliable, and long-life-cycle USB 2.0 connectors. With a strong engineering and quality team, we are qualified to offer customized products at competitive prices. Please feel free to share your drawings or ideas at your convenience, let us realize into physical product.
For a dependable and customizable USB connector solution, reach out to Alinta today! Let us assist you in finding the perfect solution for your needs.
